Gantom Pro Cable Pinout

Gantom Pro Cable Pinout

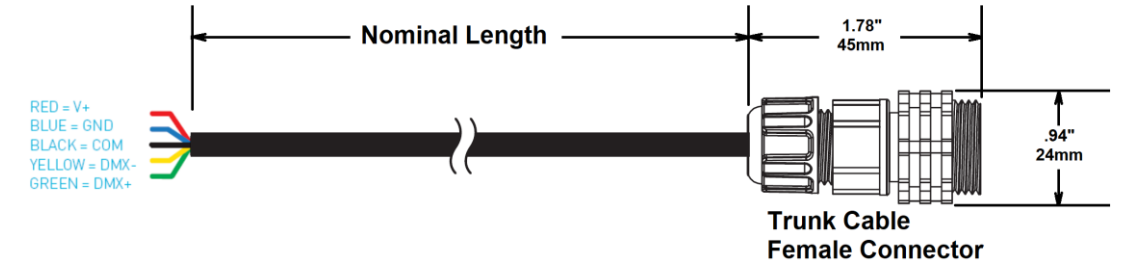

Trunk Cable

Wire Color

Wire Gauge

Pinout

Red

16 AWG

Power VDC +

Blue

16 AWG

Power GND

Green

22 AWG

DMX +

Yellow

22 AWG

DMX -

Shield

Shield

DMX COM

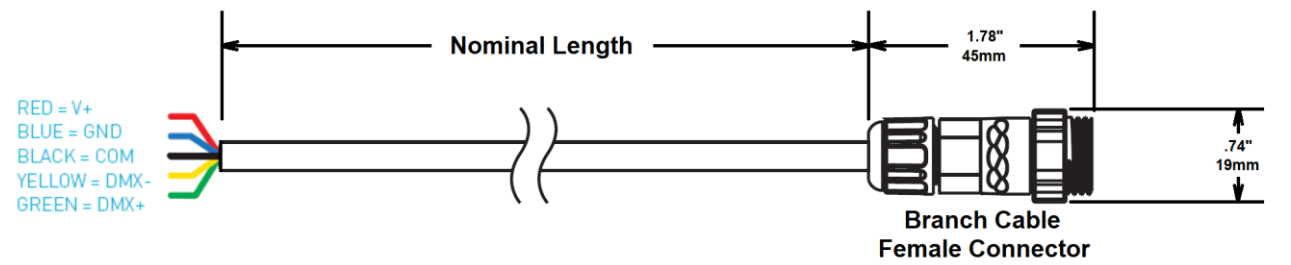

Branch Cable

Wire Color

Wire Gauge

Pinout

Red

22 AWG

Power VDC +

Blue

22 AWG

Power GND

Green

22 AWG

DMX +

Yellow

22 AWG

DMX -

Black

22 AWG

DMX COM
