Gantom Ping Trim Kit Installation

Ping Trim Kit Installation Guide

PM67 - Ping Swivel Mount w/Collar for 30mm and 40mm Fixtures - Anodized Black Finish
Compatible products: Precision Z Spot and Flood (DMX), Gantom iQ(x), Gantom DMX V2

Mounting Hole Ø 80mm (3.15") - 90mm (3.5")
Mounting Depth - Gantom DMX V2 80mm min
Mounting Depth - Precision Z 60mm min

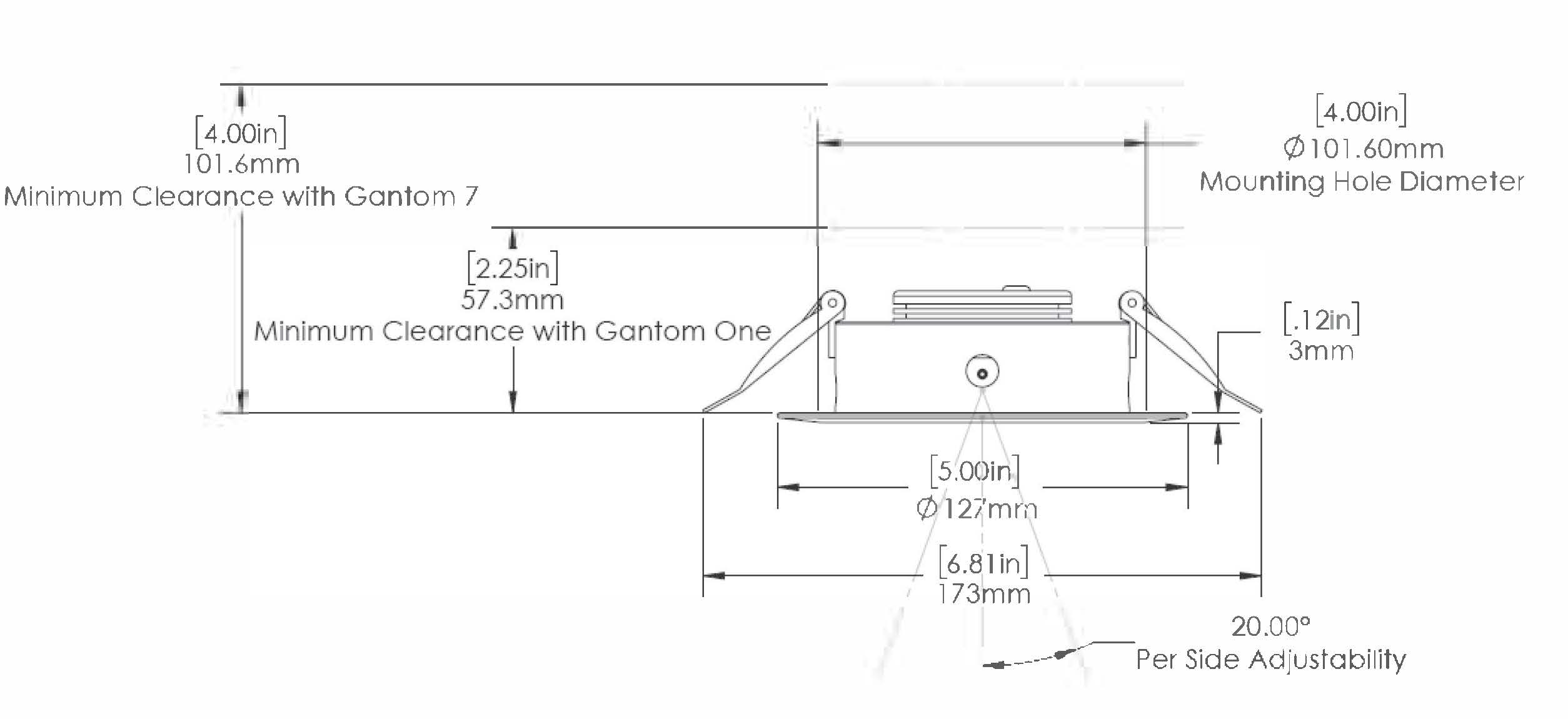

PM70 -  Ping Swivel Mount for 60mm Fixtures - Black Finish
Compatible products: Gantom One (DMX), Gantom 7

Mounting Hole Ø 101.6mm (4")
Mounting Depth - Gantom One (DMX) 57.3mm min
Mounting Depth - Gantom 7 101.6mm min
